Compact powerhouse for demand-driven heat recovery ventilationFlux Wall

Compact barrel with high flow rates in a small format

Thanks to Renson's new Flux Wall Compact, a small technical room no longer needs to be an obstacle to a demand-driven heat recovery ventilation system. The Compact may be the little brother of the Flux Wall, but it can still handle flow rates of up to 350m³/h. Opt for a smart and compact ventilation unit, installed in record time and with a low energy bill for your end customer.

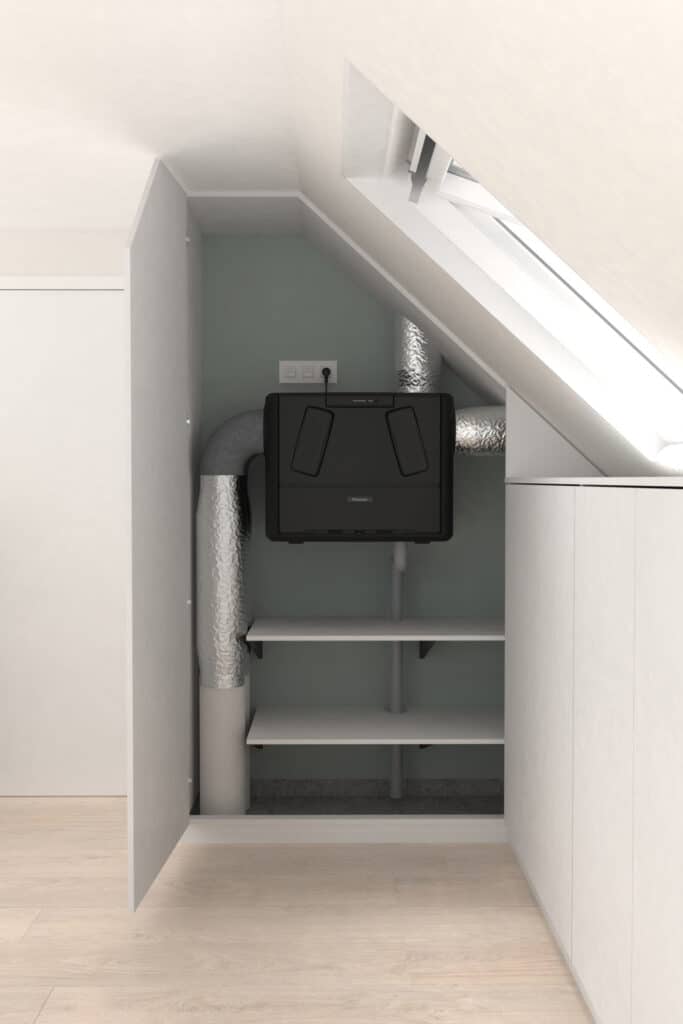

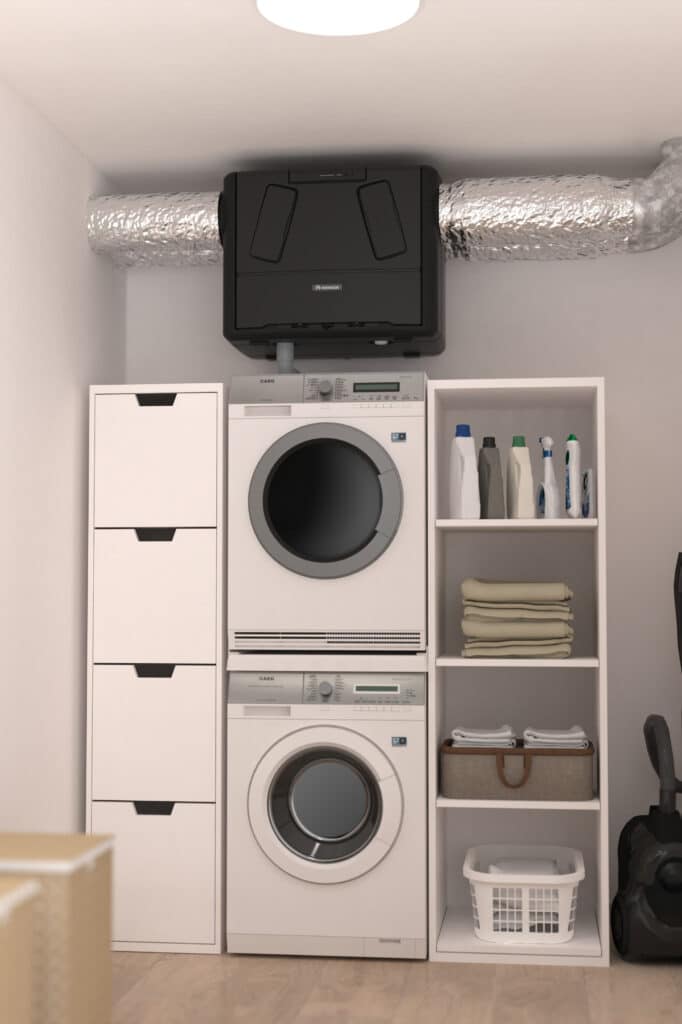

With a compact version of the Flux Wall, Renson is adding a new device to the Flux family, the extensive range for balanced ventilation with heat recovery. This unit is barely 55 centimeters high and weighs only 19 kilograms, yet you can still count on an impressive flow rate of up to 350 m³/h. This makes the Flux Wall Compact the lowest on the market at that maximum flow rate and an ideal solution for projects with small technical spaces. The limited height, combined with the integrated plenum and connection options on both the top and sides of the unit, ensure that you can handle any situation with Flux Wall Compact: built into a cabinet, as a replacement for a ventilation unit in an existing installation, or even on top of a washing machine and dryer in a technical room with a height of 2.30 meters.

Simple and quick installation and service

The compact and lightweight device is easy to install on your own. The quick and guided start-up via the Renson Installer Portal and the accompanying app ensures smooth installation. No matter how you connect the supply and exhaust pipes, they are always very easy to configure via the installer app. Service is just as quick and easy. Any part can be replaced in less than five minutes. This saves you time and means your customer is helped quickly. To provide your customer with optimal peace of mind, you can also use the remote service option in the installer portal. This allows you to quickly resolve certain problems without having to go on site.

Fully automatic air exchange

As with other Renson balanced ventilation units, the smart Flux Wall Compact monitors indoor air quality fully automatically. Sensors in the unit monitor humidity, CO₂– and VOC levels in the indoor air. By temporarily increasing ventilation when one of these values becomes too high, your customer does not have to worry about the ventilation system. As soon as the indoor air quality is back under control, the Flux Wall Compact returns to its basic flow rate, so that no more energy is consumed than necessary. With up to 89% heat recovery on top of that, the unit is extremely energy efficient.

Boost to living comfort

For your customers, the Flux Wall Compact is an absolute boost to their modern living comfort. They breathe healthy indoor air at all times, without having to worry about it themselves and without noise. The ventilation unit is both powerful and whisper-quiet. A golden combination. The user app also gives them insight into the operation of the ventilation system at any time. Does a filter need replacing? Then the app notifies the user. Handy, even for those without technical knowledge.

Because no two projects are the same, you can easily adapt the device to specific requirements and needs. Choose from various filters, use the 2-zone system, or add a humidifier or frost protection. You can also easily connect the Flux Wall Compact to home automation systems such as Loxone, Smart Home, and Niko Home Control via API.
